BNK601/BKS - BHD Lighting

Union

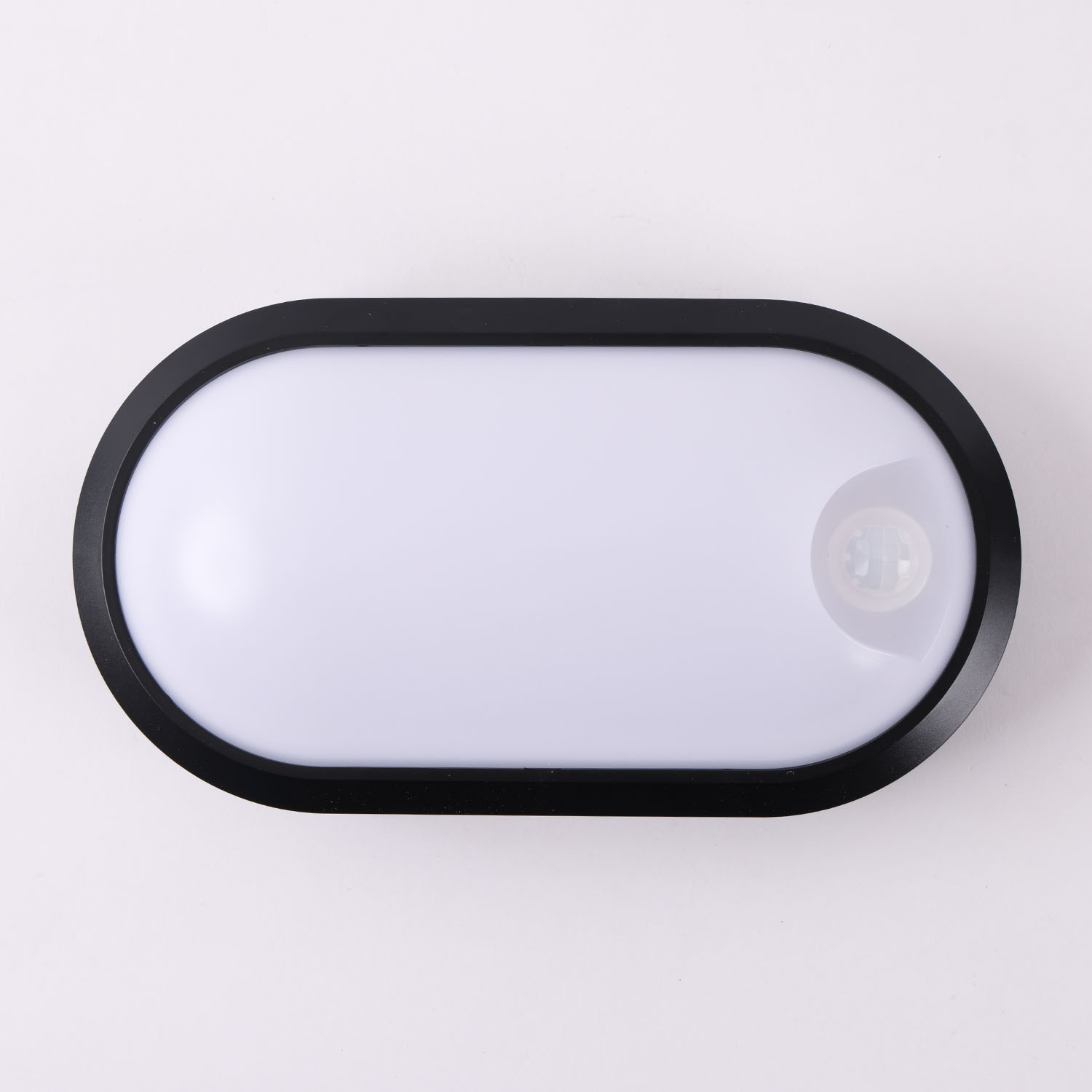

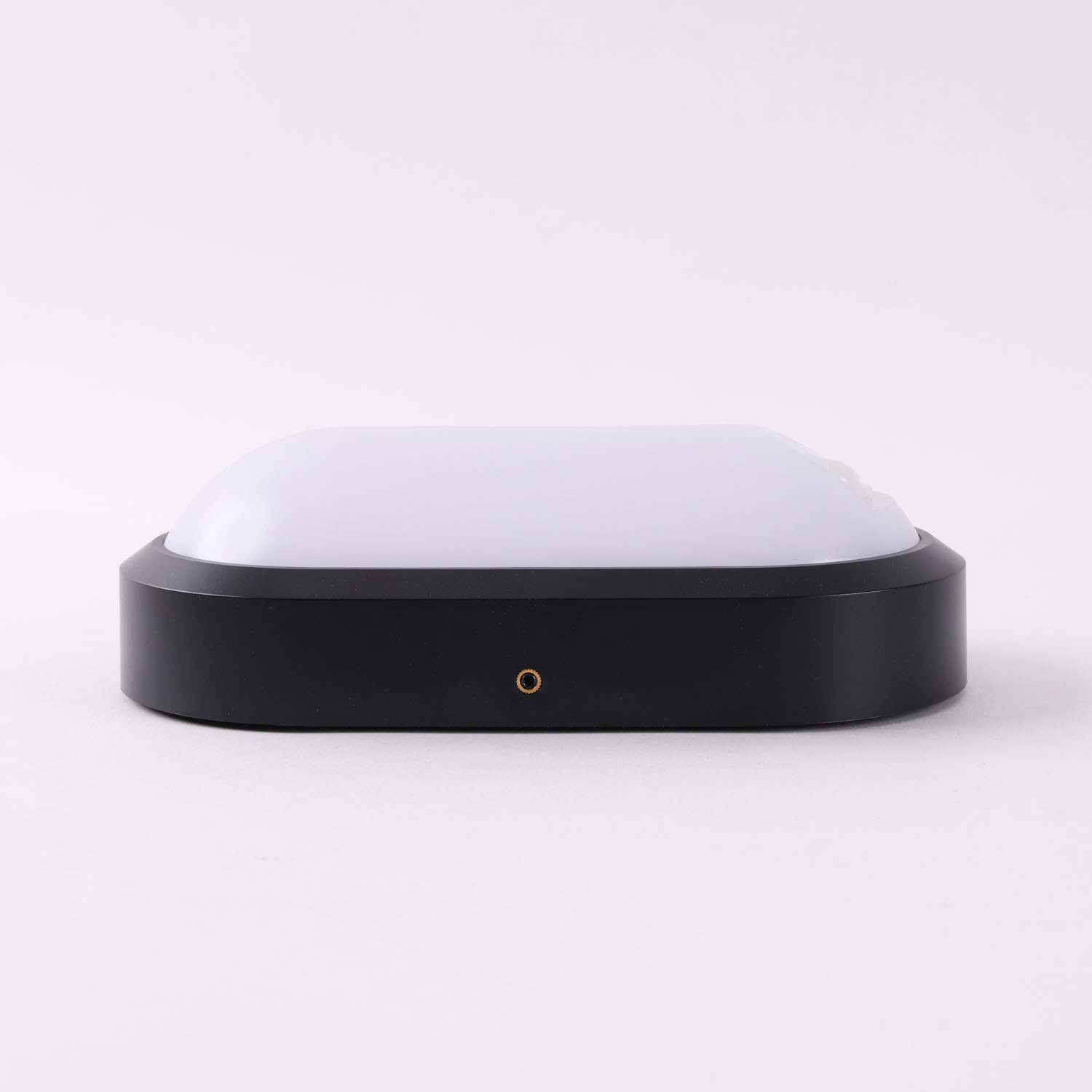

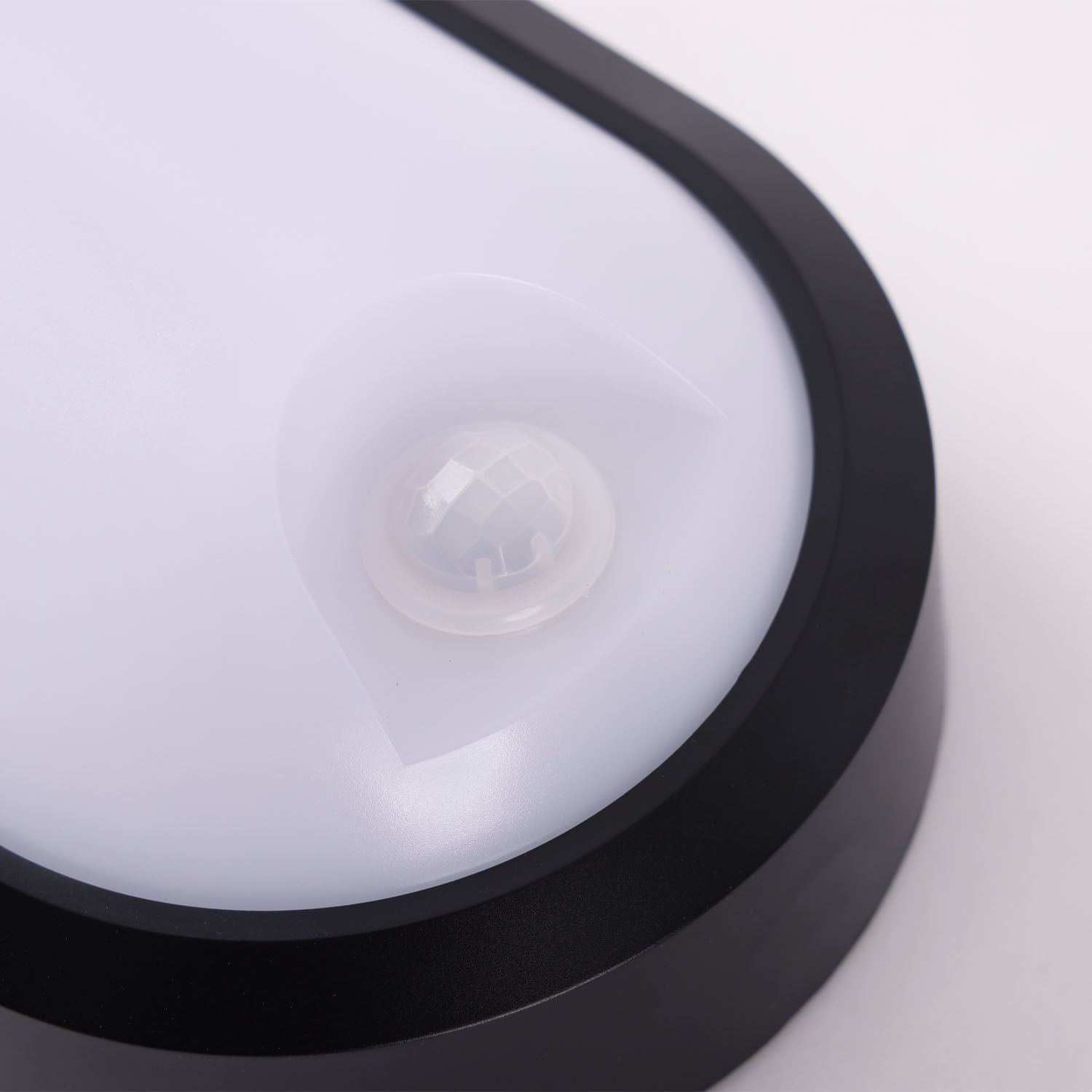

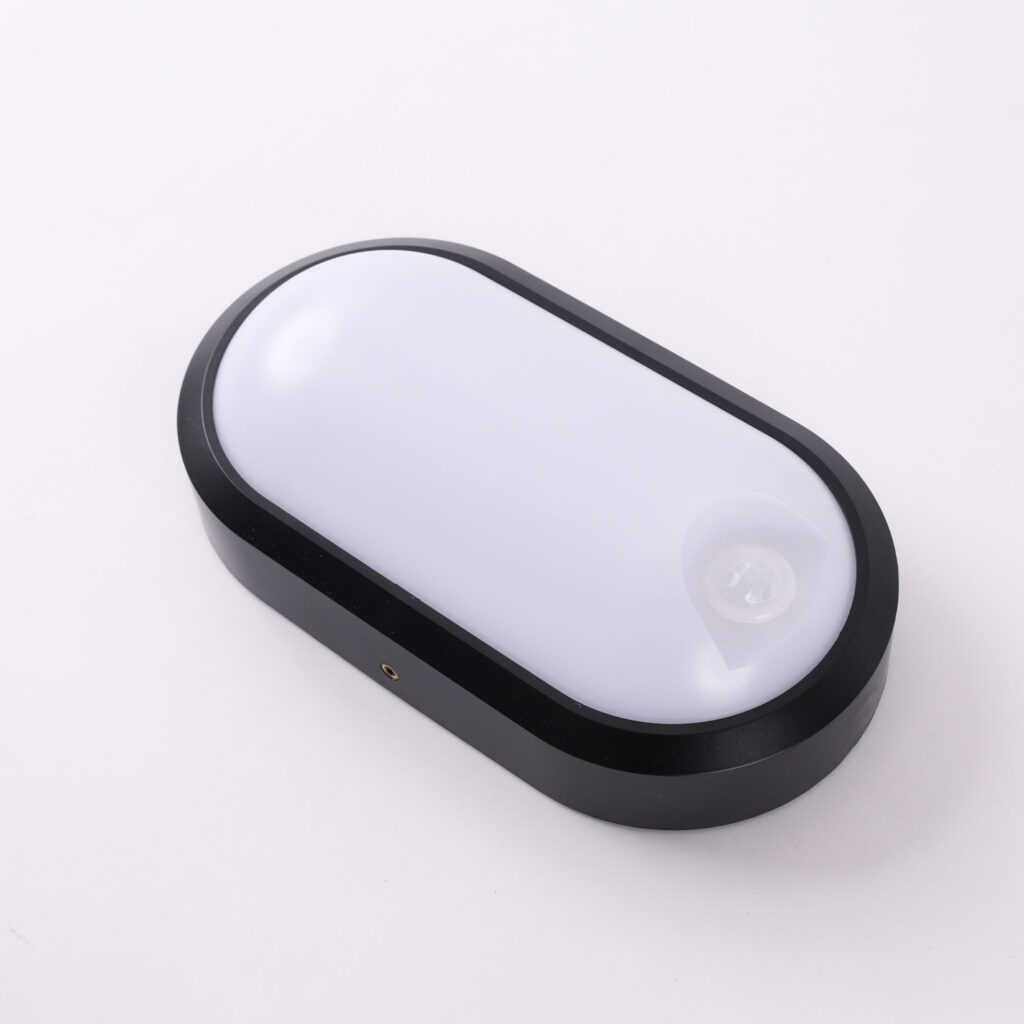

Oval LED Bunker Light

Product Code:

BNK601/BKS

BUNKER 10W LED TRI COLOUR OVAL WITH SENSOR UNION

Category:

Bunkers, Commercial Lighting, Exterior Lighting, Residential, Sensor Lighting

Application:

commercial, residential

Product Information

Brand:

BHD Lighting.

PRODUCT TYPE:

Oval LED Bunker Light

Order code:

81676

Family:

Union

body colour:

Black

BODY MATERIAL:

Polycarbonate

DIFFUSED:

Yes

DIFFUSER MATERIAL:

Polycarbonate

DIFFUSER Type:

DIFFUSER COLOUR:

Opaque

Trim COLOUR:

Black

Standards:

AS/NZS60598.1, AS/NZS60598.2.1

Compliance

Lumens / Meter:

Cutting Point:

Bend Diameter:

Life Span:

Driver Options:

Mounting Accessories:

Additional Notes:

Website:

Email:

Address:

ABN:

Driver

Driver Dimmable:

No

Driver Position:

Integral

Driver TYPE:

Flicker Free

CONNECTION TYPE:

Fixed Wiring

Input Current:

0.07A

Inrush Current:

Output Voltage:

60 ~ 70Vdc

Output Current:

65mA

Rated Current:

Rated power:

Rated load:

Protection:

Short Circuit, Over Voltage, Over Current, Over Temperature

Working Humidity:

Technical Specifications

BATTERY TYPE:

BATTERY CAPACITY:

INITIAL CHARGE TIME (Hrs):

DISCHARGE TIME (Hrs):

TEST MODE:

Solar Panel Type:

Solar Panel Wattage:

Solar Charge Controller:

Detection Range:

90°

Detection Distance:

2 ~ 6 Mt Adjustable

Detection Speed:

Installation Height:

Wall Mount 1.8Mt

Time Delay:

10 sec ~ 7 min. Adjustable

Sensor Type:

PIR

Sensor Function:

Sensor Operating Temp:

-20° ~ +40°C

Dimension & Weight

WIDTH (mm):

120

HEIGHT (mm):

66

LENGTH (mm):

220

Diameter (mm):

WEIGHT:

400g

Cutout Diameter (mm):

Spot Diameter (mm):

Base Diameter (mm):

Head Length (mm):

Mounting Type:

Accessories

Accessories:

Oval Grill Black Order Code: 81577, Oval Grill White Order Code: 81584

Accessories Track:

Accessories Live Ends:

Accessories Dead Ends:

Accessories Track Joiners:

Accessories Power Adapters:

Accessories 90° Track Joiners:

Accessories "T" Track Joiners:

Accessories Track Suspension:

Accessories Thin trim 90mm Fixed:

Accessories Thin Trim Adjustable 90mm:

Accessories Wide Trim Fixed 70mm Cutout:

Accessories Wide Trim Fixed 90mm Cutout:

Accessories Curved Reflector Head 75mm Cutout:

Accessories Gimble Head 70-75mm Cutout:

Accessories Gimble Head 90mm Cutout:

Accessories Pinhole Head 75mm Cutout

Accessories Pinhole Head 90mm Cutout

Operation

INPUT VOLTAGE:

220 ~ 240Vac

INPUT FREQUENCY:

50 ~ 60Hz

ELECTRICAL RATING:

Class II

CCT:

Tri-Colour 3000K, 4000K, 5000K.

UGR:

Wattage:

5W

Max Power:

Power Consumption:

IP RATING:

IP65

IK RATING:

IK08

IC RATING:

TEMP RANGE:

-20° ~ +45°C

VIEWING range:

Lumens:

500 ~ 600 Without Grille, 400 ~ 500 With Grille

CRI:

Power Factor:

Emergency Mode:

SDCM:

Beam Angle:

120°

Warranty:

5 Years
