BNK621/S/WH - BHD Lighting

Link

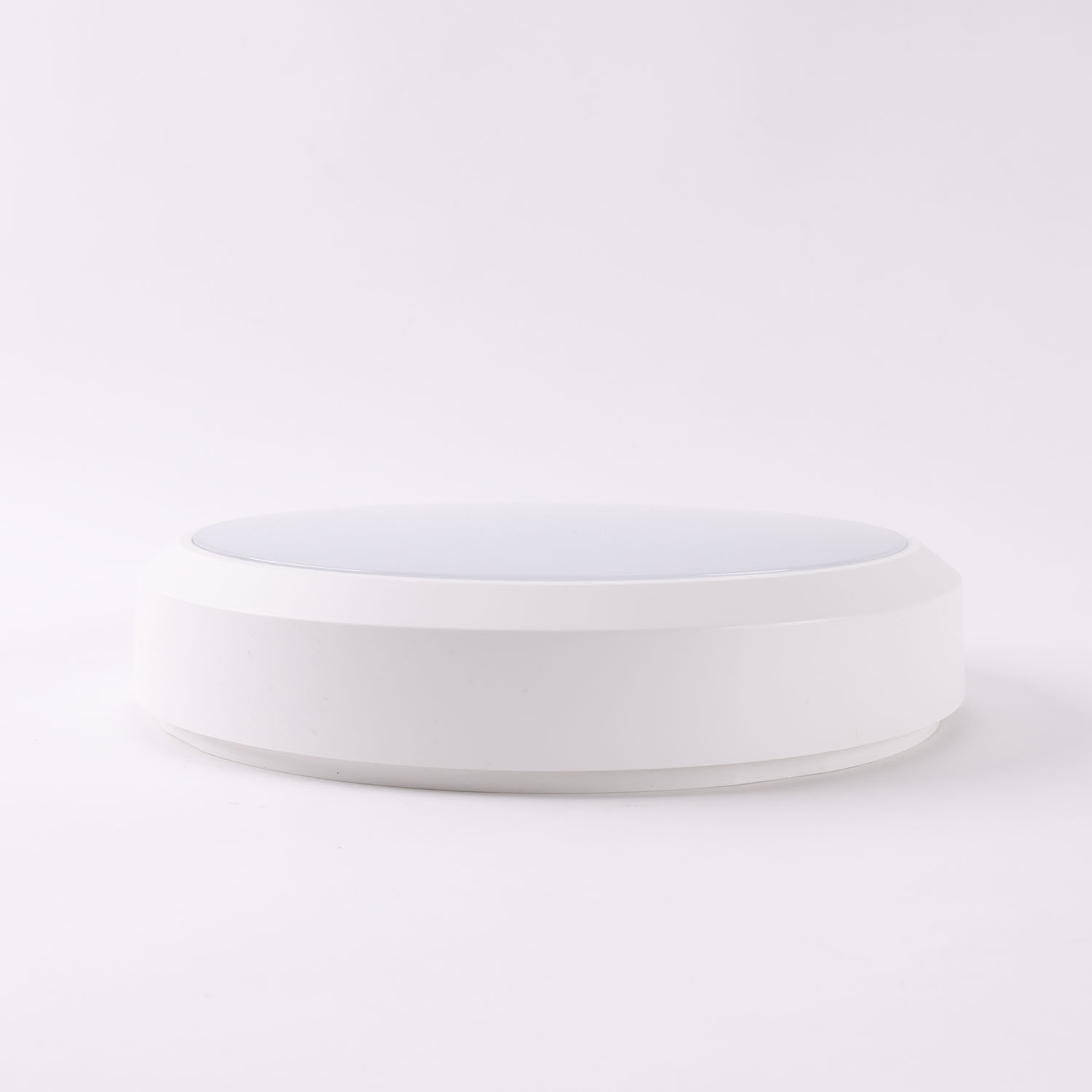

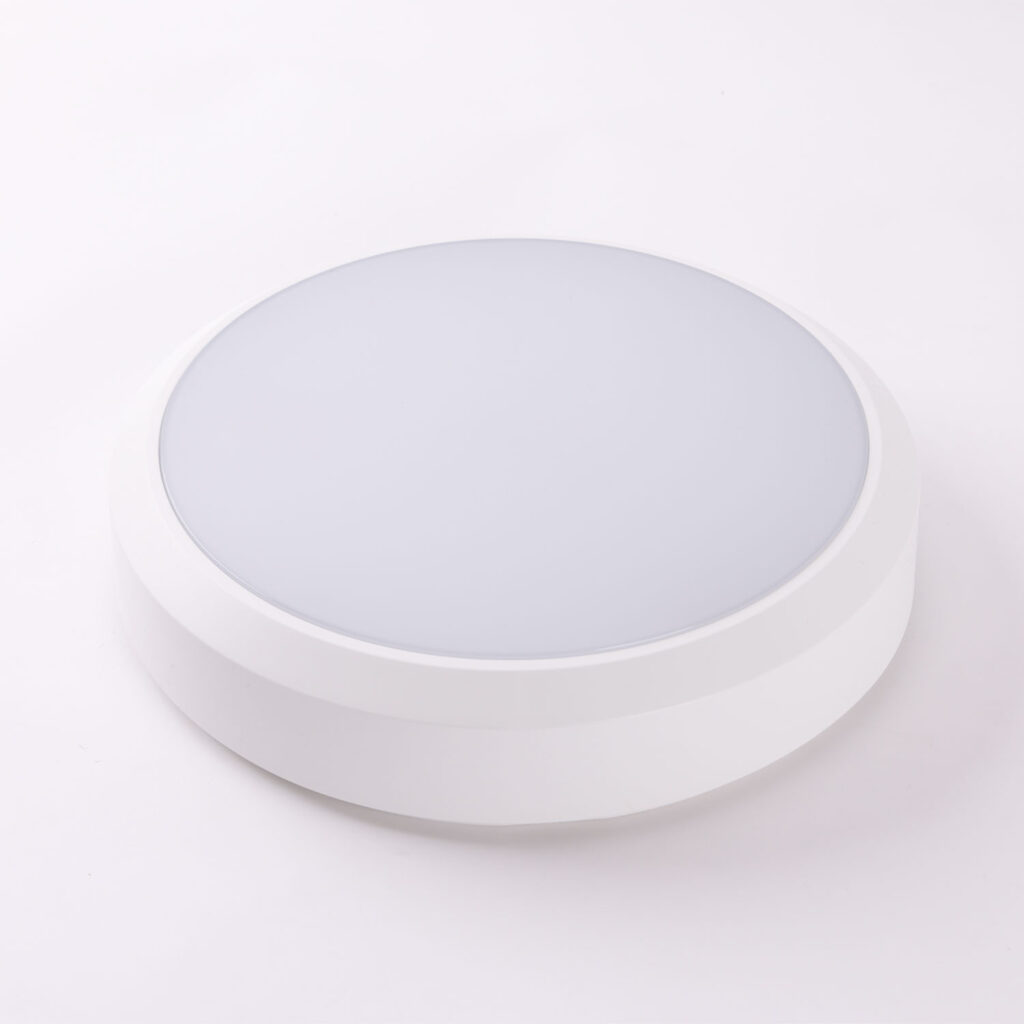

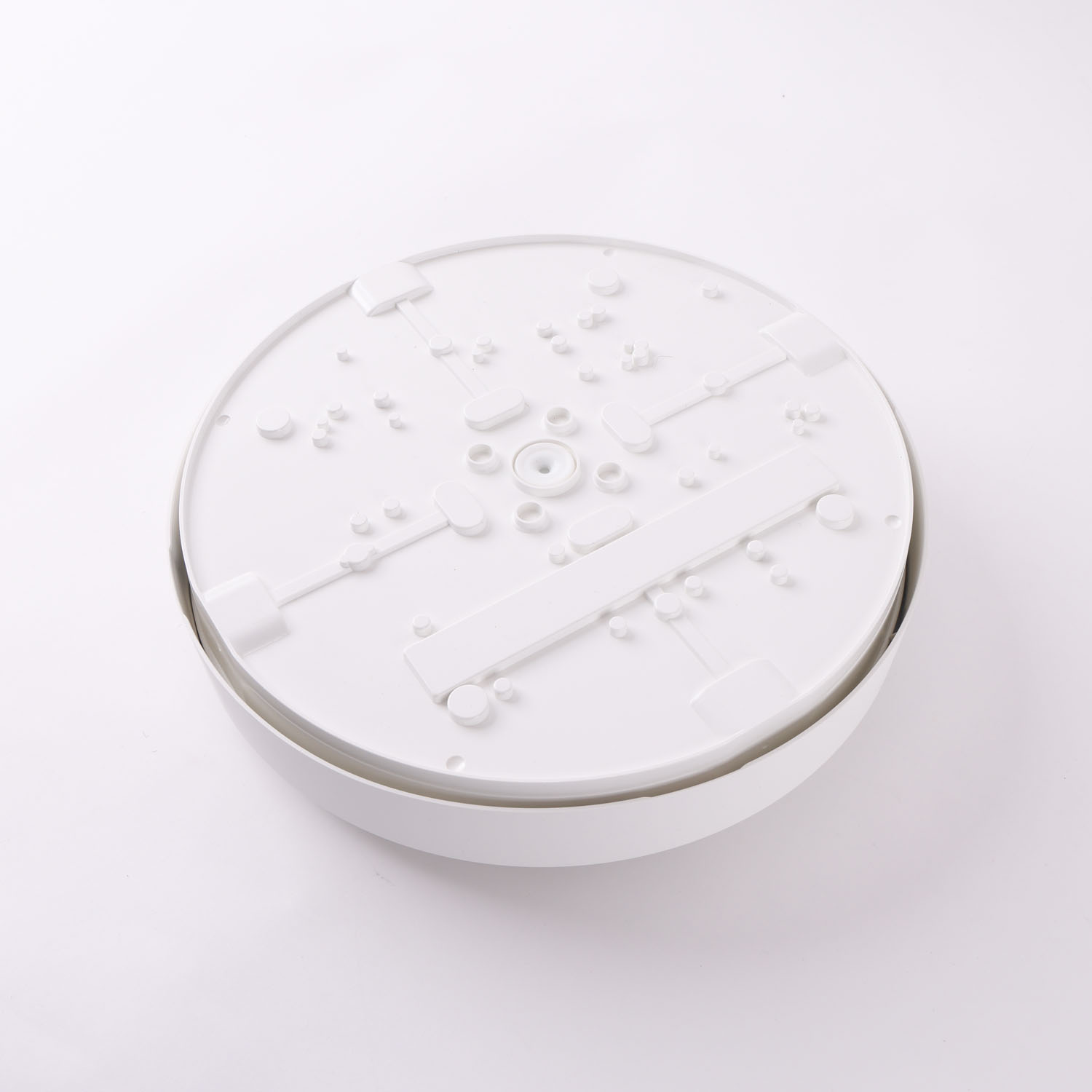

LED Bunker Light with Sensor

Product Code:

BNK621/S/WH

BUNKER 20W-12W LED QUAD WATTAGE TRI 300MM POLYCARB SENSOR IP66 LINK

Category:

Bunkers, Exterior Lighting, Sensor Lighting

Application:

commercial, residential

Product Information

Brand:

BHD Lighting.

PRODUCT TYPE:

LED Bunker Light with Sensor

Order code:

83274

Family:

Link

body colour:

White

BODY MATERIAL:

Polycarbonate

DIFFUSED:

Yes

DIFFUSER MATERIAL:

Polycarbonate

DIFFUSER Type:

DIFFUSER COLOUR:

Opaque

Trim COLOUR:

White

Standards:

AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS 61347.1, AS/NZS 61347.2.13, AS/NZS 60335.1, AS/NZS 61058.1

Compliance

Lumens / Meter:

Cutting Point:

Bend Diameter:

Life Span:

Driver Options:

Mounting Accessories:

Additional Notes:

Website:

Email:

Address:

ABN:

Driver

Driver Dimmable:

No

Driver Position:

Integral

Driver TYPE:

CONNECTION TYPE:

Fixed Wiring

Input Current:

Inrush Current:

30A/200uSec

Output Voltage:

62.4 ~ 76.8Vdc

Output Current:

150 ~ 250mA

Rated Current:

Rated power:

Rated load:

Protection:

Working Humidity:

Technical Specifications

BATTERY TYPE:

BATTERY CAPACITY:

INITIAL CHARGE TIME (Hrs):

DISCHARGE TIME (Hrs):

TEST MODE:

Solar Panel Type:

Solar Panel Wattage:

Solar Charge Controller:

Detection Range:

Detection Distance:

Detection Speed:

Installation Height:

Time Delay:

Sensor Type:

Microwave

Sensor Function:

Corridor

Sensor Operating Temp:

Dimension & Weight

WIDTH (mm):

HEIGHT (mm):

70

LENGTH (mm):

Diameter (mm):

308

WEIGHT:

TBA

Cutout Diameter (mm):

Spot Diameter (mm):

Base Diameter (mm):

Head Length (mm):

Mounting Type:

Accessories

Accessories:

BNK628/TRIM/BK Black Eyelid Trim Order Code: 81850, BNK628/TRIM/WH White Eyelid Trim Order Code: 80518

Accessories Track:

Accessories Live Ends:

Accessories Dead Ends:

Accessories Track Joiners:

Accessories Power Adapters:

Accessories 90° Track Joiners:

Accessories "T" Track Joiners:

Accessories Track Suspension:

Accessories Thin trim 90mm Fixed:

Accessories Thin Trim Adjustable 90mm:

Accessories Wide Trim Fixed 70mm Cutout:

Accessories Wide Trim Fixed 90mm Cutout:

Accessories Curved Reflector Head 75mm Cutout:

Accessories Gimble Head 70-75mm Cutout:

Accessories Gimble Head 90mm Cutout:

Accessories Pinhole Head 75mm Cutout

Accessories Pinhole Head 90mm Cutout

Operation

INPUT VOLTAGE:

220 ~ 240Vac

INPUT FREQUENCY:

50 ~ 60Hz

ELECTRICAL RATING:

Class II

CCT:

Tri-Colour 3000K, 4000K, 6000K

UGR:

Wattage:

Quad Wattage 20 ~ 12W

Max Power:

Power Consumption:

IP RATING:

IP66

IK RATING:

IK10

IC RATING:

TEMP RANGE:

-20° ~ +40° C

VIEWING range:

Lumens:

95 ~ 100

CRI:

Power Factor:

>0.9

Emergency Mode:

SDCM:

<6 @ 3000K

Beam Angle:

110°

Warranty:

5 Years
