DLT132/F - BHD Lighting

Titan

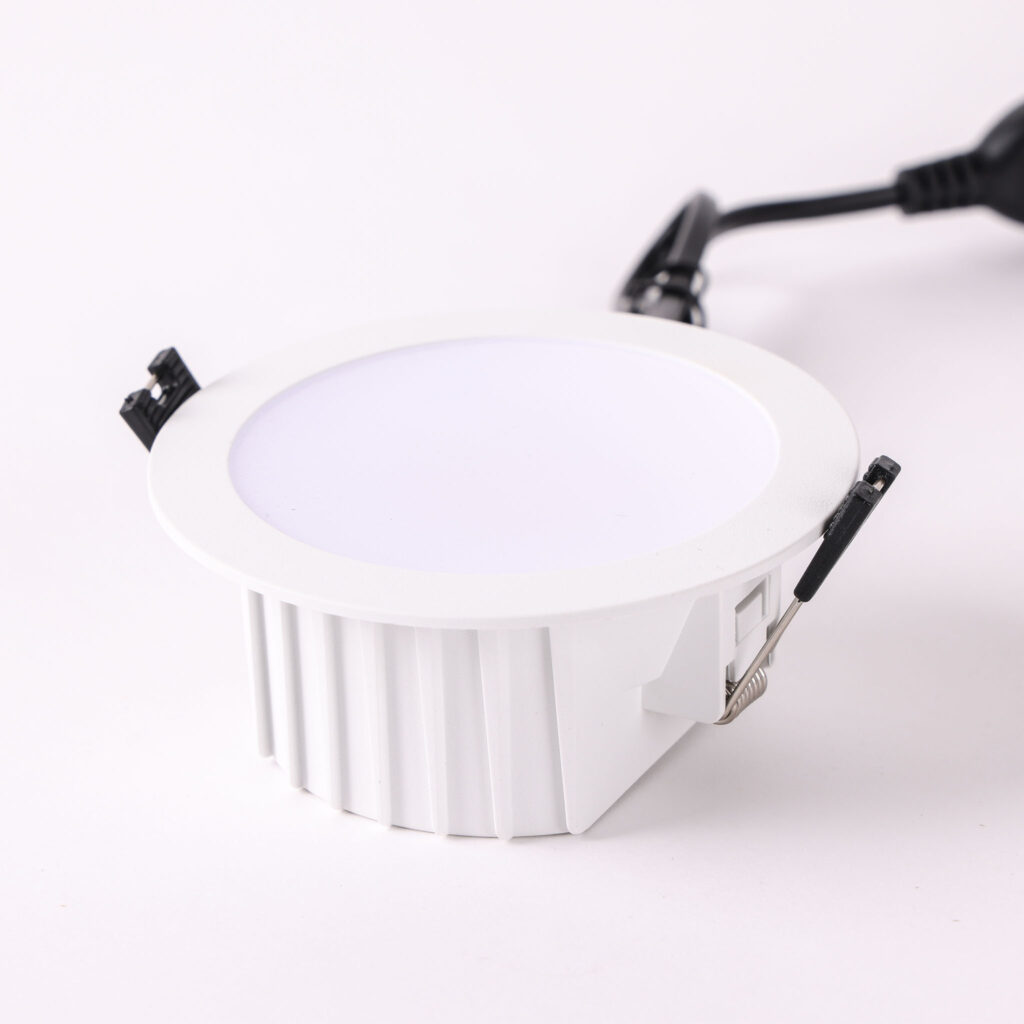

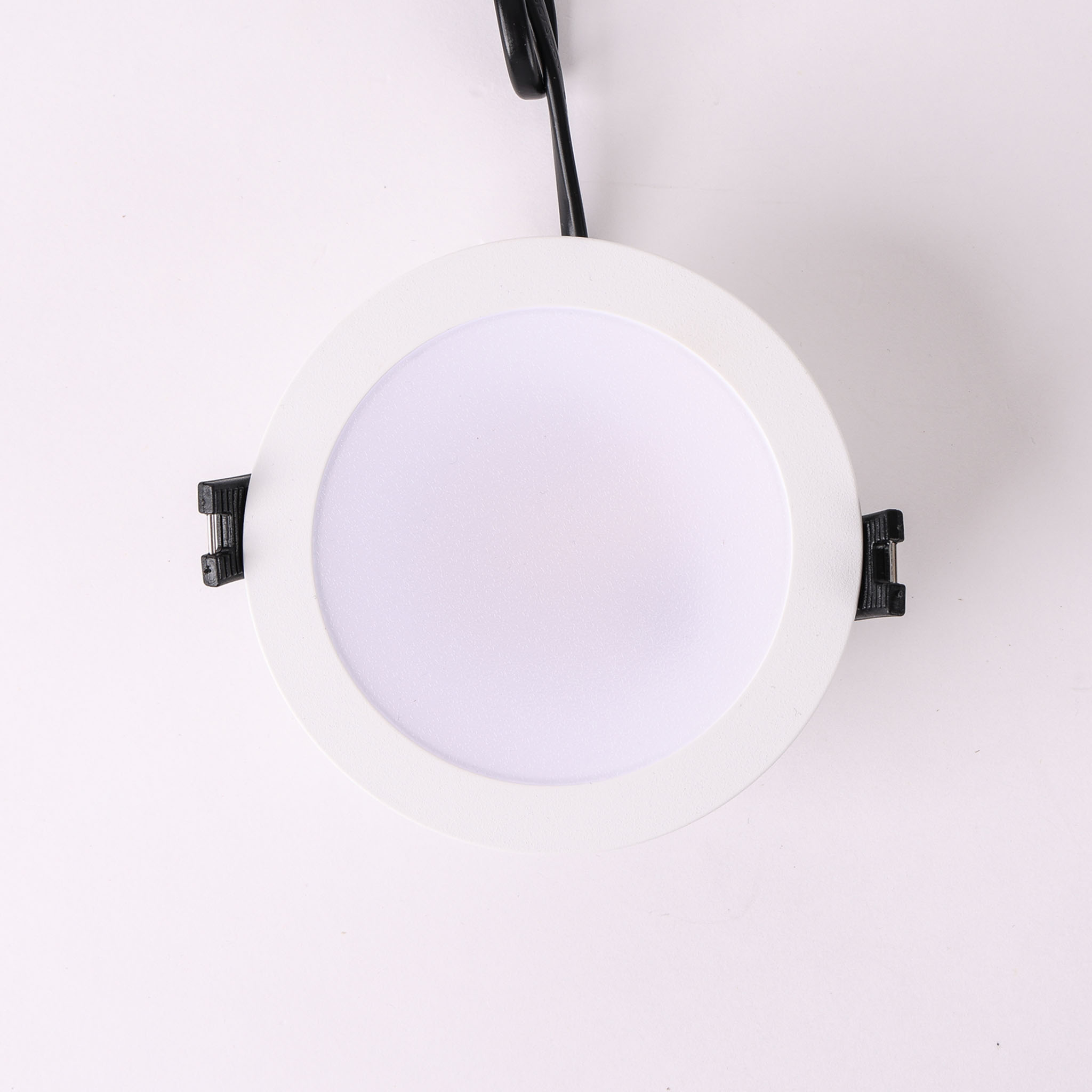

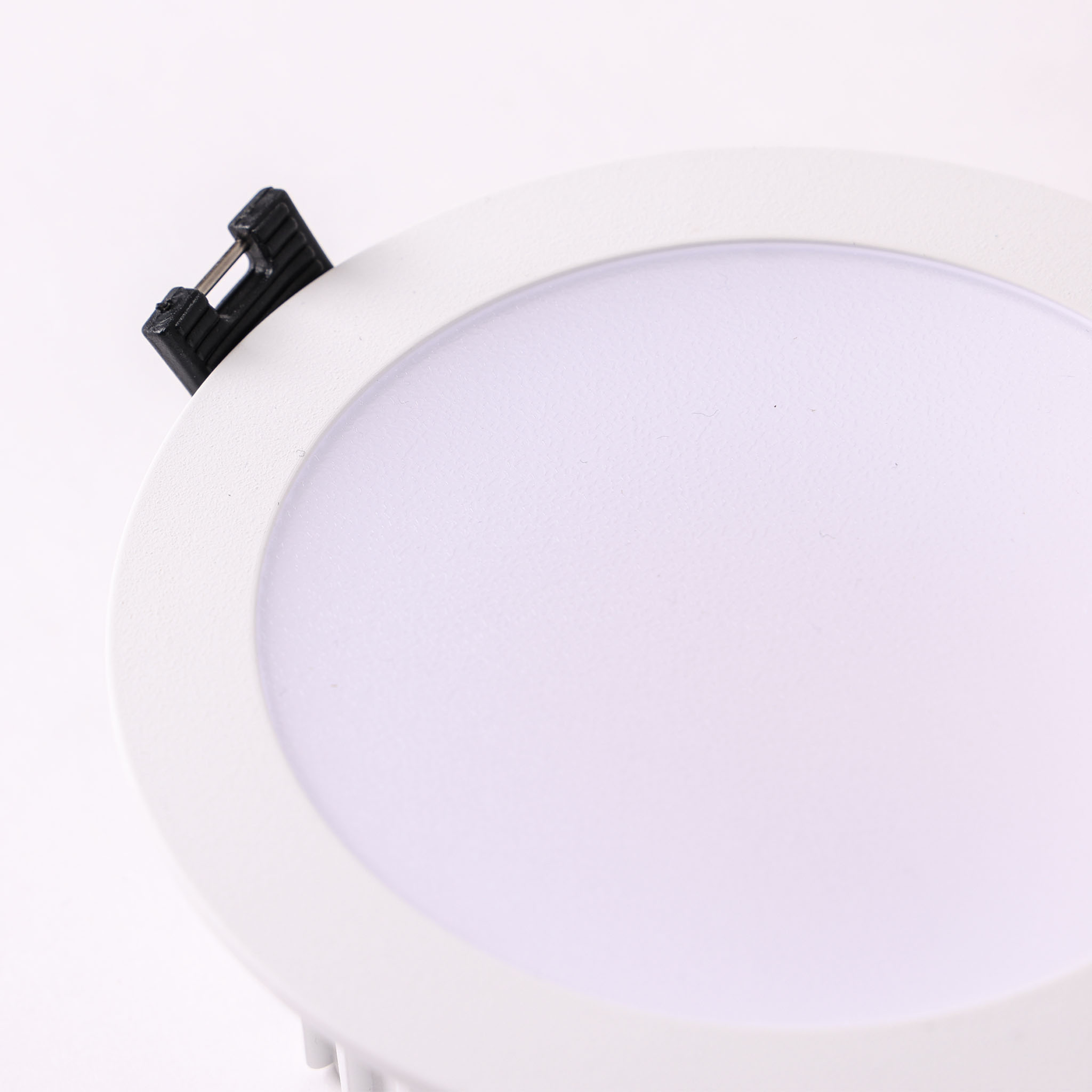

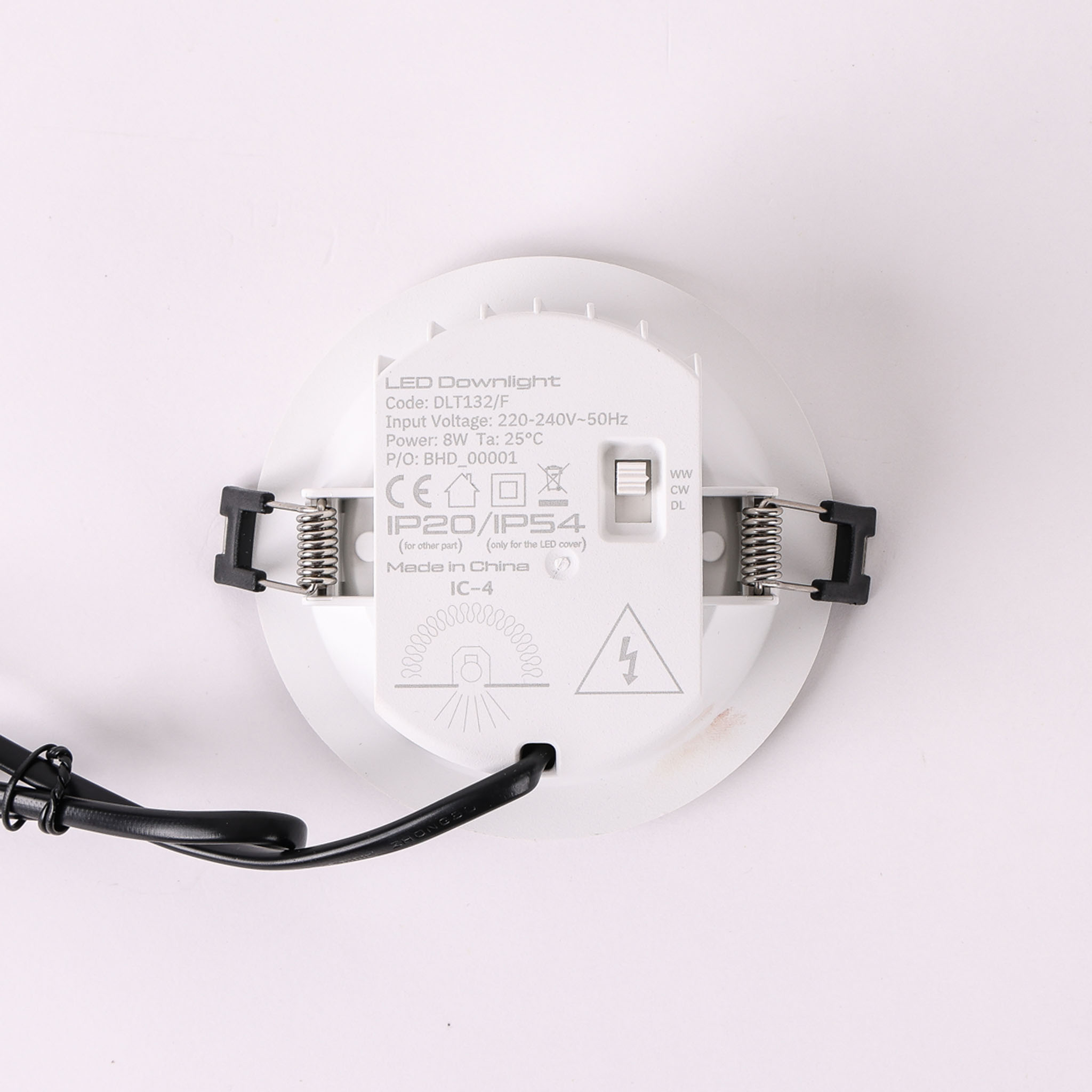

Flush Face LED Downlight

Product Code:

DLT132/F

DOWNLIGHT 8W LED TRI COLOUR SMD DIMMABLE FLUSH LENS 90MM CUT OUT TITAN

Category:

Commercial Lighting, Downlights, Interior Lighting, Recessed Lighting, Residential

Application:

commercial, residential

Product Information

Brand:

BHD Lighting.

PRODUCT TYPE:

Flush Face LED Downlight

Order code:

81706

Family:

Titan

body colour:

White

BODY MATERIAL:

Polycarbonate

DIFFUSED:

Yes. Flush

DIFFUSER MATERIAL:

Polycarbonate

DIFFUSER Type:

DIFFUSER COLOUR:

Opaque

Trim COLOUR:

Standards:

AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13, AS/NZS 61347.1, AS/NZS 61347.2.13

Compliance

Lumens / Meter:

Cutting Point:

Bend Diameter:

Life Span:

Driver Options:

Mounting Accessories:

Additional Notes:

Website:

Email:

Address:

ABN:

Driver

Driver Dimmable:

Yes

Driver Position:

Remote

Driver TYPE:

Triac Dimming

CONNECTION TYPE:

Flex & Plug

Input Current:

0.05A

Inrush Current:

Output Voltage:

55 ~ 65Vdc

Output Current:

115mA

Rated Current:

Rated power:

Rated load:

Protection:

Short Circuit, Over Voltage, Over Current, Over Temperature

Working Humidity:

Technical Specifications

BATTERY TYPE:

BATTERY CAPACITY:

INITIAL CHARGE TIME (Hrs):

DISCHARGE TIME (Hrs):

TEST MODE:

Solar Panel Type:

Solar Panel Wattage:

Solar Charge Controller:

Detection Range:

Detection Distance:

Detection Speed:

Installation Height:

Time Delay:

Sensor Type:

Sensor Function:

Sensor Operating Temp:

Dimension & Weight

WIDTH (mm):

HEIGHT (mm):

44.5

LENGTH (mm):

Diameter (mm):

106

WEIGHT:

180g

Cutout Diameter (mm):

90

Spot Diameter (mm):

90

Base Diameter (mm):

Head Length (mm):

Mounting Type:

Accessories

Accessories:

Accessories Track:

Accessories Live Ends:

Accessories Dead Ends:

Accessories Track Joiners:

Accessories Power Adapters:

Accessories 90° Track Joiners:

Accessories "T" Track Joiners:

Accessories Track Suspension:

Accessories Thin trim 90mm Fixed:

Accessories Thin Trim Adjustable 90mm:

Accessories Wide Trim Fixed 70mm Cutout:

Accessories Wide Trim Fixed 90mm Cutout:

Accessories Curved Reflector Head 75mm Cutout:

Accessories Gimble Head 70-75mm Cutout:

Accessories Gimble Head 90mm Cutout:

Accessories Pinhole Head 75mm Cutout

Accessories Pinhole Head 90mm Cutout

Operation

INPUT VOLTAGE:

220 ~ 240Vac

INPUT FREQUENCY:

50 ~ 60Hz

ELECTRICAL RATING:

Class II

CCT:

Tri-Colour 3000K, 4000K, 5700K

UGR:

Wattage:

8W

Max Power:

Power Consumption:

IP RATING:

IP20

IK RATING:

IC RATING:

TEMP RANGE:

-20° ~ +40°C

VIEWING range:

Lumens:

660 ~ 800 ñ5%

CRI:

Power Factor:

>0.9

Emergency Mode:

SDCM:

<6

Beam Angle:

100°

Warranty:

5 Years
