DLT161/CW/WH - BHD Lighting

Remus

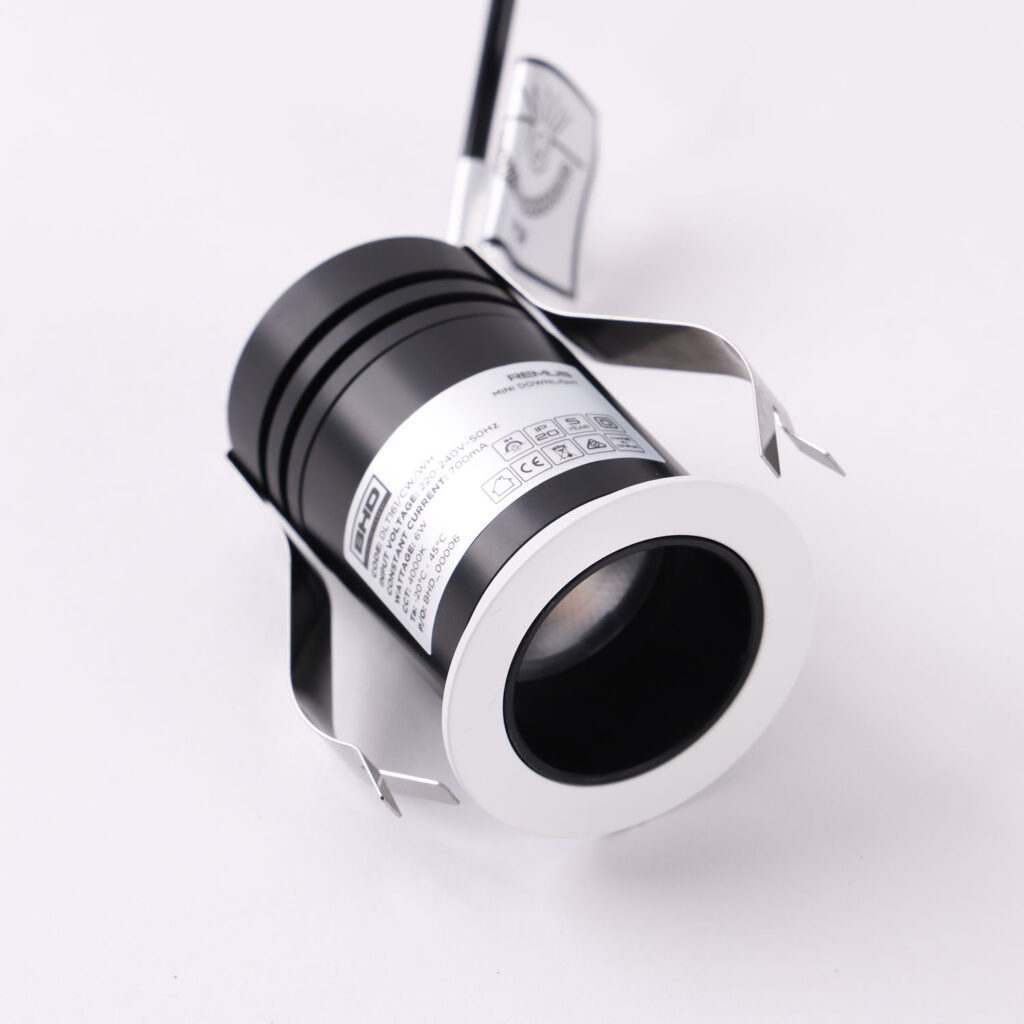

Mini LED Downlight

Product Code:

DLT161/CW/WH

DOWNLIGHT 6W LED MINI 40MM CUT-OUT REMUS

Category:

Commercial Lighting, Downlights, Interior Lighting, Residential

Application:

commercial, residential

Product Information

Brand:

BHD Lighting.

PRODUCT TYPE:

Mini LED Downlight

Order code:

83502

Family:

Remus

body colour:

White

BODY MATERIAL:

PMMA

DIFFUSED:

Yes

DIFFUSER MATERIAL:

PMMA

DIFFUSER Type:

DIFFUSER COLOUR:

Clear

Trim COLOUR:

Standards:

Compliance

Lumens / Meter:

Cutting Point:

Bend Diameter:

Life Span:

Driver Options:

Mounting Accessories:

Additional Notes:

Website:

Email:

Address:

ABN:

Driver

Driver Dimmable:

Driver Position:

Remote

Driver TYPE:

CONNECTION TYPE:

Flex & Plug

Input Current:

Inrush Current:

Output Voltage:

12 ~ 42Vdc

Output Current:

150mA

Rated Current:

Rated power:

Rated load:

Protection:

Working Humidity:

Technical Specifications

BATTERY TYPE:

BATTERY CAPACITY:

INITIAL CHARGE TIME (Hrs):

DISCHARGE TIME (Hrs):

TEST MODE:

Solar Panel Type:

Solar Panel Wattage:

Solar Charge Controller:

Detection Range:

Detection Distance:

Detection Speed:

Installation Height:

Time Delay:

Sensor Type:

Sensor Function:

Sensor Operating Temp:

Dimension & Weight

WIDTH (mm):

HEIGHT (mm):

64

LENGTH (mm):

Diameter (mm):

45

WEIGHT:

150g

Cutout Diameter (mm):

40

Spot Diameter (mm):

40

Base Diameter (mm):

Head Length (mm):

Mounting Type:

Accessories

Accessories:

Accessories Track:

Accessories Live Ends:

Accessories Dead Ends:

Accessories Track Joiners:

Accessories Power Adapters:

Accessories 90° Track Joiners:

Accessories "T" Track Joiners:

Accessories Track Suspension:

Accessories Thin trim 90mm Fixed:

Accessories Thin Trim Adjustable 90mm:

Accessories Wide Trim Fixed 70mm Cutout:

Accessories Wide Trim Fixed 90mm Cutout:

Accessories Curved Reflector Head 75mm Cutout:

Accessories Gimble Head 70-75mm Cutout:

Accessories Gimble Head 90mm Cutout:

Accessories Pinhole Head 75mm Cutout

Accessories Pinhole Head 90mm Cutout

Operation

INPUT VOLTAGE:

220 ~ 240Vac

INPUT FREQUENCY:

50 ~ 60Hz

ELECTRICAL RATING:

Class I

CCT:

Single - Warm White 3000K, Cool White 4000K

UGR:

Wattage:

6W

Max Power:

Power Consumption:

IP RATING:

IP20

IK RATING:

IK04

IC RATING:

TEMP RANGE:

-20° ~ +40°C

VIEWING range:

Lumens:

80 ~ 85

CRI:

Power Factor:

0.9

Emergency Mode:

SDCM:

<3

Beam Angle:

45°

Warranty:

5 Years
