EXT632/WH - BHD Lighting

Cooper

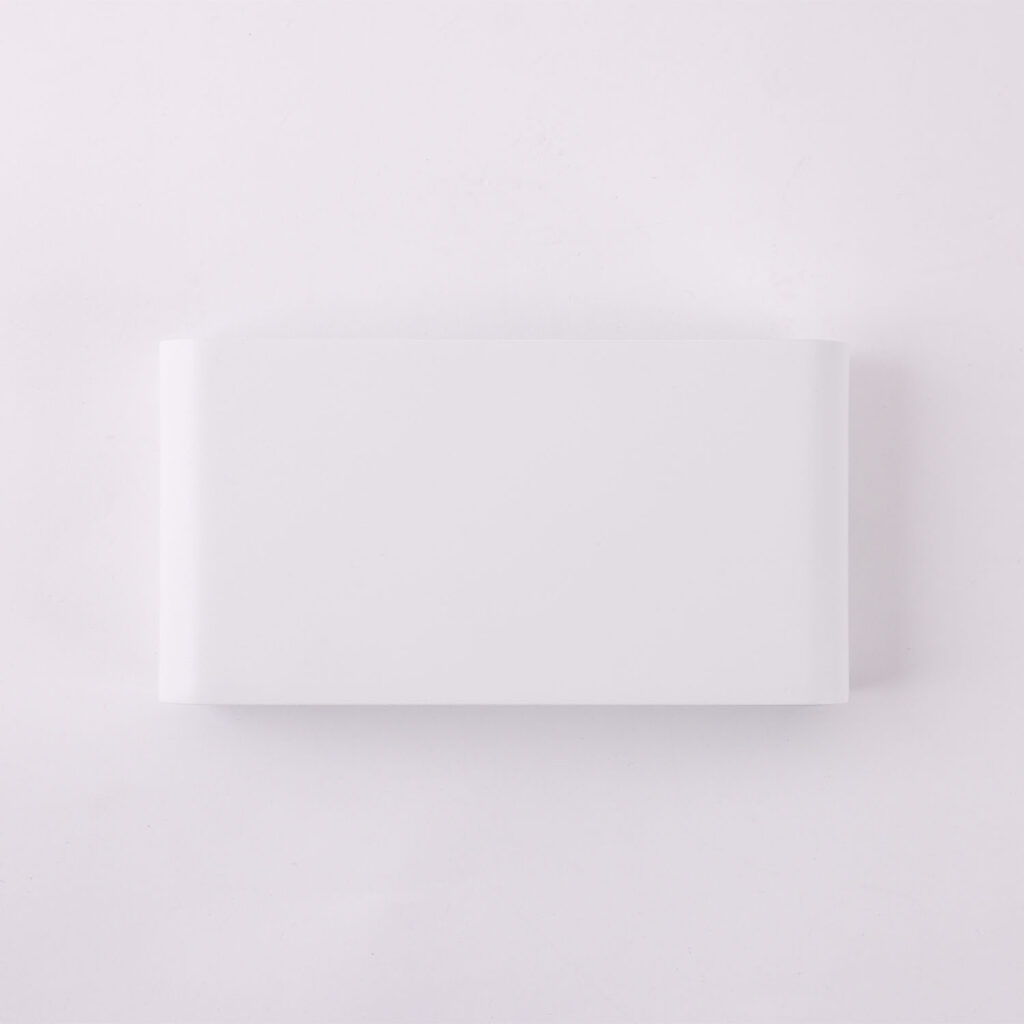

Up / Down LED Wall Light

Product Code:

EXT632/WH

WALL LIGHT 6W LED TRI COLOUR SLIMLINE UP/DOWN ANTI-CORROSIVE IP65 COOPER

Category:

Commercial Lighting, Exterior Lighting, Wall Lighting

Application:

commercial

Product Information

Brand:

BHD Lighting.

PRODUCT TYPE:

Up / Down LED Wall Light

Order code:

81027

Family:

Cooper

body colour:

White

BODY MATERIAL:

Polycarbonate

DIFFUSED:

Yes

DIFFUSER MATERIAL:

Polycarbonate

DIFFUSER Type:

DIFFUSER COLOUR:

Opaque

Trim COLOUR:

Standards:

AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS 61347.1, AS/NZS 61347.2.13

Compliance

Lumens / Meter:

Cutting Point:

Bend Diameter:

Life Span:

Driver Options:

Mounting Accessories:

Additional Notes:

Website:

Email:

Address:

ABN:

Driver

Driver Dimmable:

No

Driver Position:

Integral

Driver TYPE:

Flicker Free

CONNECTION TYPE:

Fixed Wiring

Input Current:

0.038A

Inrush Current:

Output Voltage:

30 ~ 40Vdc

Output Current:

145mA

Rated Current:

Rated power:

Rated load:

Protection:

Short Circuit, Over Voltage, Over Current, Over Temperature

Working Humidity:

Technical Specifications

BATTERY TYPE:

BATTERY CAPACITY:

INITIAL CHARGE TIME (Hrs):

DISCHARGE TIME (Hrs):

TEST MODE:

Solar Panel Type:

Solar Panel Wattage:

Solar Charge Controller:

Detection Range:

Detection Distance:

Detection Speed:

Installation Height:

Time Delay:

Sensor Type:

Sensor Function:

Sensor Operating Temp:

Dimension & Weight

WIDTH (mm):

135

HEIGHT (mm):

104

LENGTH (mm):

30.5

Diameter (mm):

WEIGHT:

470g

Cutout Diameter (mm):

Spot Diameter (mm):

Base Diameter (mm):

Head Length (mm):

Mounting Type:

Accessories

Accessories:

Accessories Track:

Accessories Live Ends:

Accessories Dead Ends:

Accessories Track Joiners:

Accessories Power Adapters:

Accessories 90° Track Joiners:

Accessories "T" Track Joiners:

Accessories Track Suspension:

Accessories Thin trim 90mm Fixed:

Accessories Thin Trim Adjustable 90mm:

Accessories Wide Trim Fixed 70mm Cutout:

Accessories Wide Trim Fixed 90mm Cutout:

Accessories Curved Reflector Head 75mm Cutout:

Accessories Gimble Head 70-75mm Cutout:

Accessories Gimble Head 90mm Cutout:

Accessories Pinhole Head 75mm Cutout

Accessories Pinhole Head 90mm Cutout

Operation

INPUT VOLTAGE:

220 ~ 240Vac

INPUT FREQUENCY:

50 ~ 60Hz

ELECTRICAL RATING:

Class I

CCT:

Tri-Colour 3000K, 4000K, 5700K

UGR:

Wattage:

6W

Max Power:

Power Consumption:

IP RATING:

IP65

IK RATING:

IK08

IC RATING:

TEMP RANGE:

-20° ~ 45°C

VIEWING range:

Lumens:

440 ~ 530

CRI:

Power Factor:

0.8

Emergency Mode:

SDCM:

<6

Beam Angle:

120° See Photometric Information

Warranty:

5 Years
