Edge

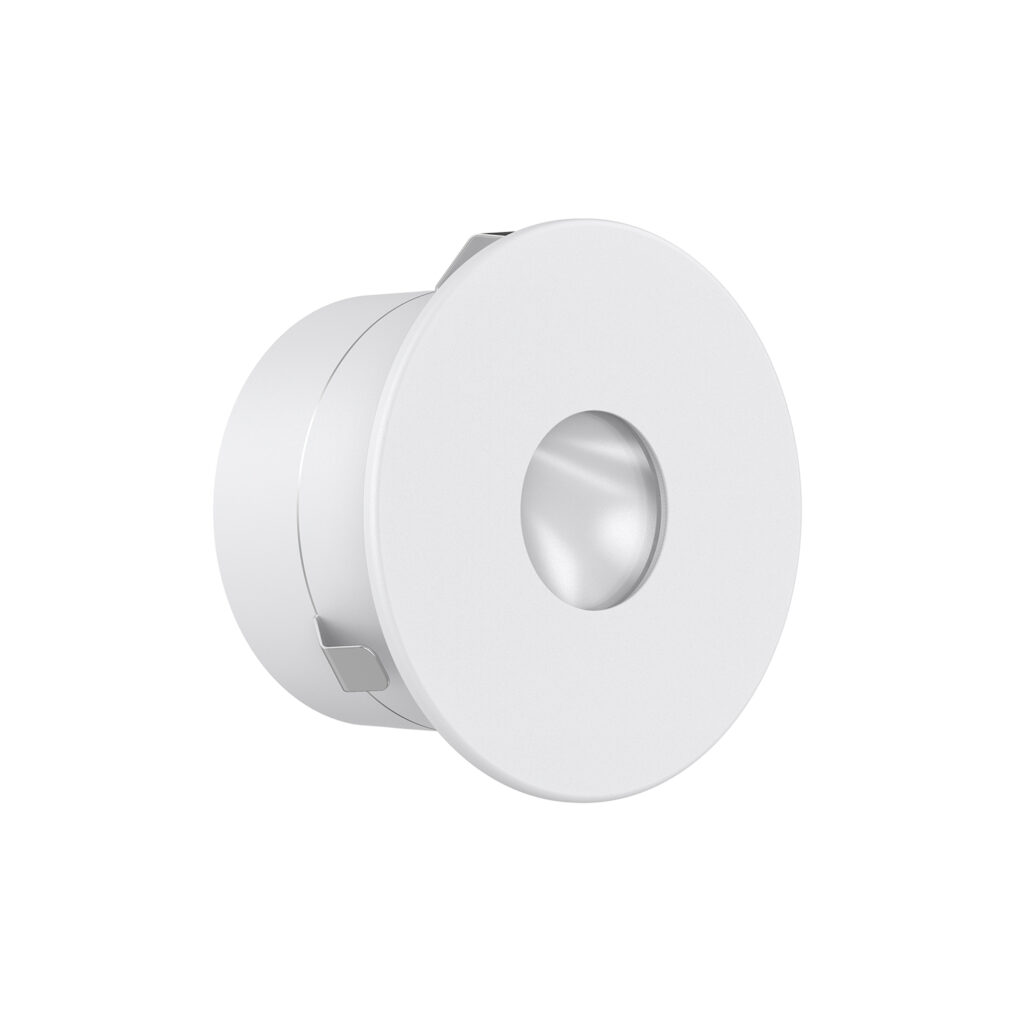

LED Step Light

Product Code:

STL830/CW

STEPLIGHT 3W LED 12V DC 30DEG BEAM ANGLE RECESSED IP54 EDGE

Category:

, , , ,

Application:

,

Product Information

Brand:

BHD Lighting.

PRODUCT TYPE:

LED Step Light

Order code:

81560

Family:

Edge

body colour:

White

BODY MATERIAL:

Polycarbonate

DIFFUSED:

Yes

DIFFUSER MATERIAL:

Polycarbonate

DIFFUSER Type:

DIFFUSER COLOUR:

Clear

Trim COLOUR:

Black or White

Standards:

Compliance

Lumens / Meter:

Cutting Point:

Bend Diameter:

Life Span:

Driver Options:

Mounting Accessories:

Additional Notes:

Website:

Email:

Address:

ABN:

Driver

Driver Dimmable:

No

Driver Position:

Remote

Driver TYPE:

CONNECTION TYPE:

Flex & Plug

Input Current:

0.4A

Inrush Current:

Output Voltage:

2 ~ 4Vdc

Output Current:

750mA

Rated Current:

Rated power:

Rated load:

Protection:

Short Circuit, Over Voltage, Over Temperature

Working Humidity:

Technical Specifications

BATTERY TYPE:

BATTERY CAPACITY:

INITIAL CHARGE TIME (Hrs):

DISCHARGE TIME (Hrs):

TEST MODE:

Solar Panel Type:

Solar Panel Wattage:

Solar Charge Controller:

Detection Range:

Detection Distance:

Detection Speed:

Installation Height:

Time Delay:

Sensor Type:

Sensor Function:

Sensor Operating Temp:

Dimension & Weight

WIDTH (mm):

HEIGHT (mm):

31

LENGTH (mm):

Diameter (mm):

54

WEIGHT:

70g

Cutout Diameter (mm):

45

Spot Diameter (mm):

45

Base Diameter (mm):

Head Length (mm):

Mounting Type:

Accessories

Accessories:

Round Magnetic Trim Round Black Order Code: 81591, Round Magnetic Trim Round White Order Code: 81621, Round Magnetic Trim Eyelid Black Order Code: 81607, Round Magnetic Trim Eyelid White Order Code: 81638, Round Magnetic Trim Slot Black Order Code: 81614, Round Magnetic Trim Slot White Order Code: 81645, Square Magnetic Trim Round Black Order Code: 83076, Square Magnetic Trim Round White Order Code: 83083, Square Magnetic Trim Eyelid Black Order Code: 83052, Square Magnetic Trim Eyelid White Order Code: 83069, Square Magnetic Trim Slot Black Order Code: 83090, Square Magnetic Trim Slot White Order Code: 83106

Accessories Track:

Accessories Live Ends:

Accessories Dead Ends:

Accessories Track Joiners:

Accessories Power Adapters:

Accessories 90° Track Joiners:

Accessories "T" Track Joiners:

Accessories Track Suspension:

Accessories Thin trim 90mm Fixed:

Accessories Thin Trim Adjustable 90mm:

Accessories Wide Trim Fixed 70mm Cutout:

Accessories Wide Trim Fixed 90mm Cutout:

Accessories Curved Reflector Head 75mm Cutout:

Accessories Gimble Head 70-75mm Cutout:

Accessories Gimble Head 90mm Cutout:

Accessories Pinhole Head 75mm Cutout

Accessories Pinhole Head 90mm Cutout

Operation

INPUT VOLTAGE:

12Vdc

INPUT FREQUENCY:

ELECTRICAL RATING:

Class III

CCT:

Single Colour 3000K or 4000K

UGR:

Wattage:

3W

Max Power:

Power Consumption:

IP RATING:

IP54 (Room Side)

IK RATING:

IC RATING:

TEMP RANGE:

VIEWING range:

Lumens:

Round 160 ~ 200, Eyelid 85 ~ 90, Slot 60~ 80

CRI:

Power Factor:

0.5

Emergency Mode:

SDCM:

<6

Beam Angle:

30°

Warranty:

5 Years
